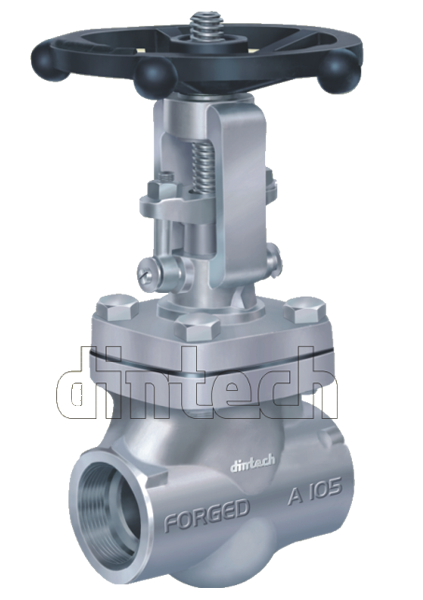

Forged Steel Gate Valve Forged Steel Gate Valve

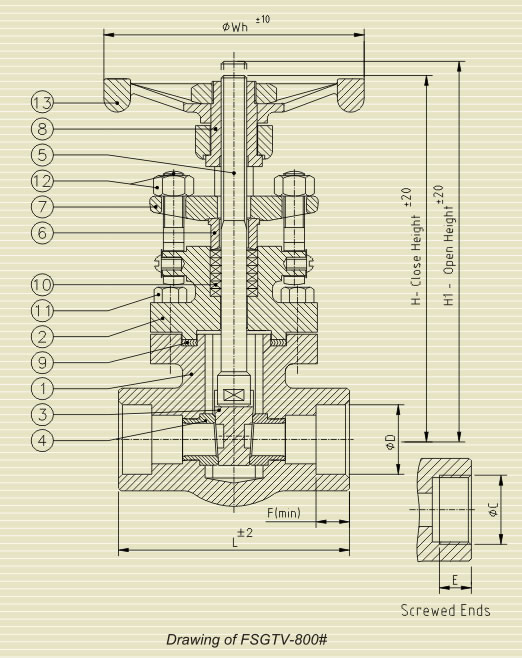

Forged Steel Gate Valve   800# / 1500#


Technical Data:

Manufacturing Std: BS 5352 / API 602
Face to Face: D N Bros. Std.
End Connection: Screwed Ends to BSP/BSPT/NPT
: Socket Weld Ends to ANSI B16.11
Inspection and Testing Std: BS 6755 (Part-1) / API 598


TESTING PRESSURE

TESTING

HYDRAULIC

PNEUMATIC



800#

1500#



BODY

3000 PSIG

5560 PSIG

-

BACK SEAT

2200 PSIG

4080 PSIG

-

SEAT

2200 PSIG

4080 PSIG

80 PSIG
